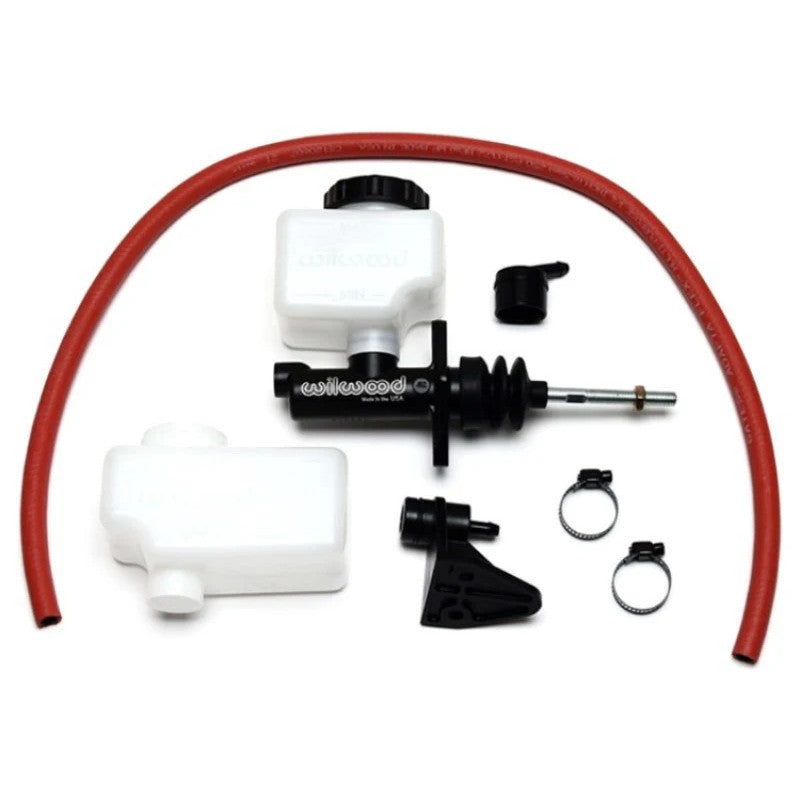

Wilwood Compact Combination Short Remote Master Cylinder Kit - 7/8in Bore 3/8-24 Banjo Outlet (260-13621)

The Wilwood Compact Combination Master Cylinder (260-13621) is engineered for applications where space is at a premium but full-size output capacity is required. This short-body design features an ultra-compact 3.37-inch body length, providing 2.16 inches of additional clearance compared to standard cylinders without sacrificing performance. The black E-coated aluminum body provides superior corrosion resistance and a durable, long-lasting finish.

Equipped with a 7/8-inch bore and a full 1.12-inch piston stroke, this master cylinder meets or exceeds the capacity of most full-size units. The 3/8-24 fluid outlet port is strategically located at the top radius of the cylinder bore to reduce the potential for trapped air. The enhanced fluid inlet port accommodates the included standard reservoir and features 11/16-20 internal threads for custom reservoir configurations.

• Manufacturer Part Number: 260-13621
• Bore Size: 7/8"
• Body Length: 3.37"
• Piston Stroke: 1.12"
• Fluid Outlet: 3/8-24 Banjo
• Inlet Thread: 11/16-20 (Internal)
• Material: Aluminum with Black E-Coat

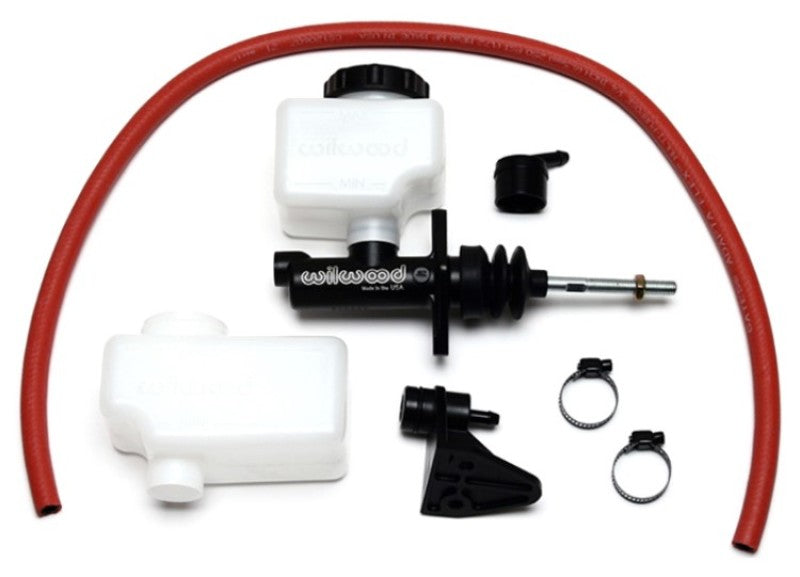

• Included Components: Master cylinder, standard fluid reservoir, and mounting hardware
